    LCH3576 System On Module real-time edge computing

    LCH3576 System On Module real-time edge computing

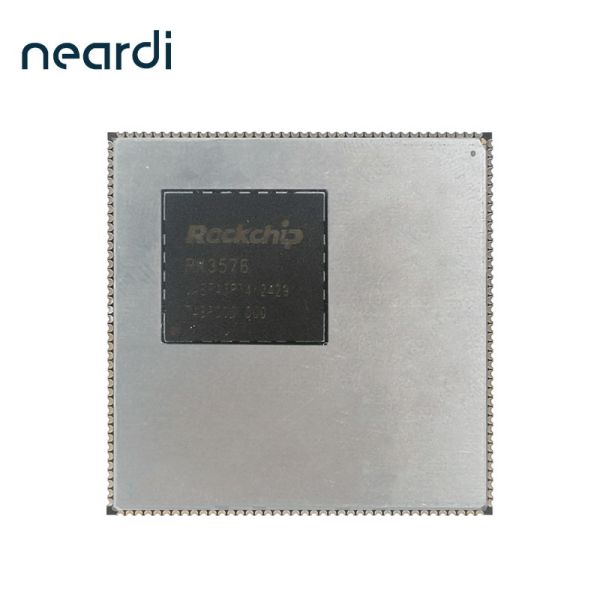

    The LCH3576 System On Module is a fully functional System On Module meticulously designed based on the Rockchip RK3576 chip platform, with dimensions of only 42mm*42mm. The System On Module connects to the baseboard via stamp hole and LGA connections, bringing out the RK3576's 160pin+148pin external pin signals while balancing the needs for high reliability, low cost, and high flexibility.


    The LCH3576 includes sections for the CPU, DDR, eMMC, and PMU. The DDR uses mainstream LPDDR4/LPDDR4X models, offering lower power consumption and faster frequencies, with a 2GB/4GB/8GB/16GB configuration option; the eMMC adopts the high-speed eMMC 5.1 standard, with a 16GB/32GB/64GB/128GB capacity option; the PMU consists of RK806 and multiple DC-DC and LDOs, with CPU core voltages supporting DVFS dynamic voltage scaling.



    Product Parameters


    Basic Parameters
    SOCRK3576; Octa-core 64-bit architecture (4x A72 + 4x A53)
    GPUMali-G52 MC3, 2D Graphics Engine, RGA dual core, VDPP, VPSS, 16M ISP, JPEG Encoder/Decoder
    NPU6TOPS; supports int4/int8/int16/FP16/BF16/TF32
    VPUDecoding: 8K30fps/4K120fps (H265/HEVC, VP9, AVS2, AV1) and 4K60fps (H264/AVC)
    Encoding: 4K60fps (H265/HEVC, H264/AVC)
    DDRLPDDR4/LPDDR4X/5, options for 2GB/4GB/8GB/16GB
    eMMCeMMC 5.1, options for 16GB/32GB/64GB/128GB
    PMURK806
    OSAndroid / Ubuntu / Buildroot / Debian/Kylin/OpenEuler
    Hardware Parameters
    Video Input interfaceMIPI interface :
    Support 3 MIPI CSI-2 interfaces
    Two 4 data lanes of D-PHY v1.2 + One 4 data lanes (or 3 data trios) of C/D-PHY
    DVP interface:
    8/10/12/16-bit, up to 150MHz I/O frequency;
    BT.601/BT.656 and BT.1120 VI interface
    Display Output interfaceHDMI/eDP TX interface up to 4K@120Hz
    eDP interface up to 4K@60fps;
    DisplayPort TX and USB combo interface up to 4K@120Hz
    MIPI DSI-2 TX interface with D-PHY v2.0(4 data lanes) or C-PHY v1.1
    Image Signal ProcessorVideo Capture (VICAP)
    Image Signal Processor V3.9
    Video Output ProcessorVideo Port0 supports up to 4K@120Hz with 10-bit data
    Video Port1 supports up to 2560x1600@60Hz with 10-bit data
    Video Port2 supports up to 1920x1080@60Hz with 8-bit data
    ConnectivitySDIO interface
    GMAC 10/100/1000M Ethernet controller
    5 SPI ports,10 I2C ports in Master mode,Two I3C master ports,12 UART ports,2 CAN ports,Multiple group of GPIO
    Other Parameters
    Operating temperature-20℃~ 70℃(Commercial)
    -40℃~ 85℃(Industrial)
    PCB interfaceLCC(160Pin) + LGA(148Pin)
    PCB sizeL* W *H(mm):42 *42 * 3.2(PCB thickness1.6mm)
    Developer's Must-Read!

    Welcome to our Resource Center, where you can find various helpful links and information for developers.
    Please visit the corresponding Wiki documentation link to obtain detailed information about the product of your choice, including the following: Hardware information: Specifications, components, and technical parameters of the product debugging Methods: Common troubleshooting steps and debugging techniques. Interface Information: Available interfaces and their functional descriptions.Firmware Programming: Guidance on firmware updates and programming processes. Compiling SDK: Detailed instructions for compiling and configuring the SDK.Linux and Android Development: Development guidelines and best practices for Linux and Android environments.
